♦ Comments on model selection:
Selection of centrifuge is essentially to find a centrifuge in a variety of centrifuge models to meet the specific material parameters and process requirements. In the process of selection process, process and equipment engineering technicians should provide proper cooperation. The physical parameters to consider the selection are: the solid concentration of the suspension, the solid particle size range, the solid-liquid two-phase density difference and the liquid phase viscosity. Liquid-liquid separation parameters include liquid-liquid two-phase concentration, density difference, and viscosity. Other parameters are related to machine material and structure, such as PH value, flammability and explosiveness, wear and so on. Another problem associated with the selection is the purpose of separation, is to obtain low oil content of the solid phase, high clarity of the liquid phase, or solid-liquid two-phase are required, or a high demand for the other phase May be appropriate to relax the request.
♦ Scope of application of centrifuge material
|
Use |
Filter centrifuge |
Sedimentation centrifuge |
|||||||||
|
Manual top |
Scraper |
Piston |
Centrifugal force |
Spiral |
Cone |
Column cone |
Tube type |
Disc manual |
Disc piston |
Disc nozzle |
|
|
Liquid - liquid separation |
|
|
|
|
|
|
|
◎ |
◎ |
◎ |
◎ |
|
Liquid - liquid - solid separation |
|
|
|
|
|
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
Liquid - solid separation |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
Particle grading |
|
|
|
|
|
◎ |
◎ |
|
|
|
|

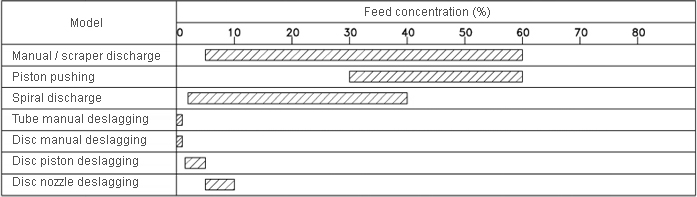

♦ Scope of application of centrifuge material

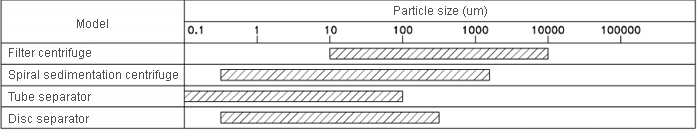

♦ Range of solid particle size
♦ The degree of drying of solid particles separated by the centrifuge
